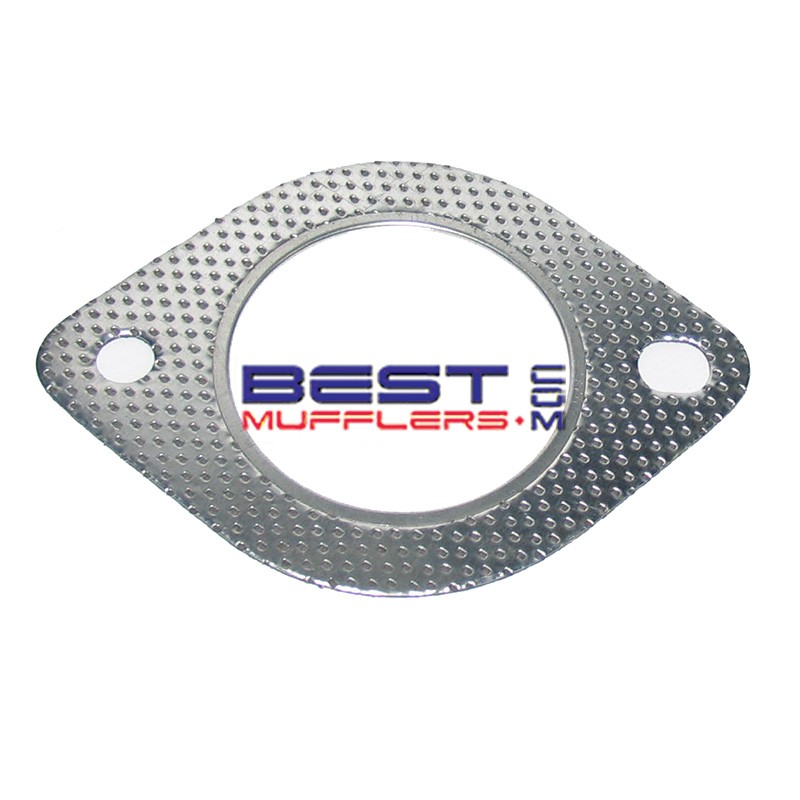

Exhaust Flange Gasket GMG093-63 – 2 Bolt 63mm ID 105mm Centres

GMG093-63 exhaust flange gasket is an OE-quality universal 2-bolt exhaust system gasket with a 63mm centre opening and 105mm bolt-hole centres.

Designed to provide a reliable seal between compatible exhaust flanges, this gasket features a 1.8mm thickness and integral fire ring. It is suitable for factory replacement exhaust components, catalytic converters, mufflers, headers and custom exhaust fabrication where the flange dimensions match.

Key Features

• OE-quality replacement exhaust gasket
• 2-bolt flange design
• 63mm centre hole
• 105mm bolt-hole centres
• 1.8mm thickness
• Integral fire ring
• Suitable for factory and aftermarket exhaust applications
• Suitable for custom exhaust fabrication where dimensions match
• Bulk quantities available

Gasket Specifications

• Part Number: GMG093-63
• Type: 2-Bolt Exhaust Flange Gasket
• Centre Hole: 63mm
• Bolt Hole Centres: 105mm
• Thickness: 1.8mm
• Fire Ring: Yes
• Application: Universal where dimensions match

Applications

GMG093-63 is a universal exhaust flange gasket suitable for exhaust systems using a compatible 2-bolt flange with a 63mm centre opening and 105mm bolt-hole centres.

Possible applications include:

• Factory replacement exhaust systems
• Performance exhaust systems
• Headers and extractors
• Catalytic converters
• Centre and rear muffler assemblies
• Intermediate exhaust pipes
• Custom exhaust fabrication

Fitment Notes

What's Included

• 1 x GMG093-63 2-bolt exhaust flange gasket

Installation Tips

• Remove the old gasket and clean both flange surfaces before installation.
• Check both exhaust flanges for distortion, corrosion or damage.
• Confirm the 63mm centre opening provides adequate clearance for the exhaust pipe.
• Confirm the mounting holes align with the 105mm bolt centres.
• Tighten flange fasteners progressively and evenly.
• Replace damaged or badly corroded exhaust bolts and nuts where required.

Recommended With

• Compatible exhaust flange plates
• Exhaust sealant where appropriate
• Replacement exhaust bolts and nuts where required
• Additional GMG093-63 gaskets for workshop or bulk requirements

Frequently Asked Questions

What size is the GMG093-63 gasket?
GMG093-63 has a 63mm centre hole, 105mm bolt-hole centres and 1.8mm thickness.

Is GMG093-63 a 2-bolt gasket?
Yes. It is designed for compatible 2-bolt exhaust flanges.

Does this gasket have a fire ring?
Yes. GMG093-63 incorporates a fire ring around the exhaust opening to provide a durable seal.

Is this a universal exhaust gasket?
Yes. GMG093-63 can be used with compatible factory, aftermarket and custom exhaust systems where the 63mm centre hole and 105mm bolt-hole centres match.

Can I use this gasket with headers or a performance exhaust?
Yes, provided the exhaust flange dimensions match. Always measure the flange before ordering.

Are bulk quantities available?
Yes. Bulk orders are available. Please contact us for quantity pricing.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Delivery is included for this gasket within Australia unless otherwise stated in the listing or checkout conditions.
