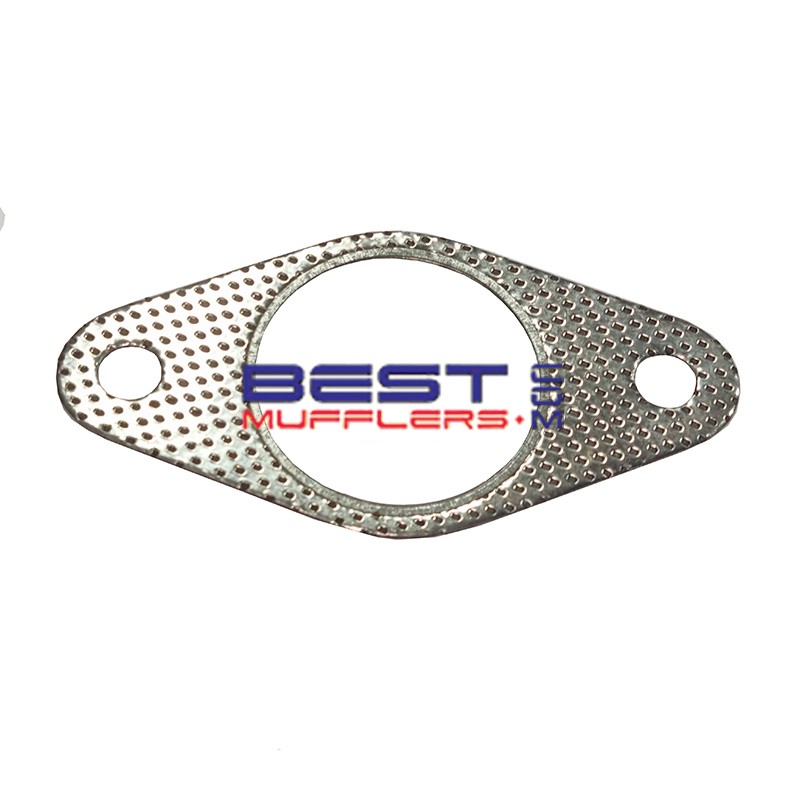

Ford Laser Mazda 323 MX-5 57mm Exhaust Flange Gasket FDG017

FDG017 exhaust flange gasket is an OE-quality two-bolt exhaust gasket suitable for selected Ford Laser, Mazda 323 and Mazda MX-5 exhaust applications, as well as other exhaust systems using a compatible flange configuration.

The gasket has a 57mm centre opening, approximately 112mm bolt-hole centres and is approximately 1.8mm thick. A built-in fire ring provides additional sealing around the exhaust opening.

Because FDG017 is used across various exhaust applications, the 57mm opening and bolt-hole spacing should be compared with the existing gasket or flange before ordering.

Key Features

• OE-quality replacement exhaust flange gasket
• 57mm centre opening
• Approximately 112mm bolt-hole centres
• Two-bolt flange design
• Approximately 1.8mm thick
• Fire ring: Yes
• Suitable for selected Ford Laser applications
• Suitable for selected Mazda 323 applications
• Suitable for selected Mazda MX-5 applications
• Also suitable for other compatible exhaust flanges
• Bulk orders available

Construction

• Part Number: FDG017
• Design: 2-bolt exhaust flange gasket
• Centre Hole Size: 57mm
• Bolt Hole Centres: Approx. 112mm
• Thickness: Approx. 1.8mm
• Fire Ring: Yes

Additional Options

• Compatible exhaust flange plates available separately
• Replacement exhaust bolts and nuts available where required
• Bulk quantities available – contact us for larger orders

Vehicle Fitment

• Ford: Selected Laser exhaust applications
• Mazda: Selected 323 exhaust applications
• Mazda: Selected MX-5 exhaust applications
• Other Applications: Exhaust systems using a compatible 57mm two-bolt flange

Important: Vehicle model alone should not be used to confirm gasket fitment. Different engines and exhaust systems can use different flange dimensions. Compare the measurements with your existing gasket or flange before ordering.

Fitment Notes

FDG017 has a 57mm centre opening with approximately 112mm bolt-hole centres. Always check both measurements against the existing exhaust flange before ordering.

During installation, completely remove the old gasket and clean both mating surfaces. Remove carbon deposits, corrosion and remaining gasket material before installing the replacement gasket.

Inspect both flange faces for distortion or damage. An exhaust gasket may not seal correctly if either flange is badly warped or corroded.

What’s Included

• 1 x FDG017 exhaust flange gasket

Recommended With

• Compatible exhaust flange plate where required
• New exhaust flange bolts and nuts where the existing fasteners are damaged or heavily corroded

Warranty & Compliance

FDG017 is intended as a replacement exhaust flange gasket for applications using a compatible 57mm two-bolt flange configuration. Correct dimensions and flange compatibility should be confirmed before installation.

FAQ

What size is the FDG017 exhaust gasket?
FDG017 has a 57mm centre opening with approximately 112mm bolt-hole centres.

How thick is FDG017?
FDG017 is approximately 1.8mm thick.

Does FDG017 have a fire ring?
Yes. FDG017 features a fire ring around the exhaust opening.

Does FDG017 fit a Ford Laser?
FDG017 is used on selected Ford Laser exhaust applications. Because different Laser models and engines can use different exhaust flanges, compare the 57mm opening and 112mm bolt-hole spacing with the existing gasket before ordering.

Does FDG017 fit a Mazda 323?
FDG017 is used on selected Mazda 323 exhaust applications. Confirm the flange dimensions before ordering.

Does FDG017 fit a Mazda MX-5?
FDG017 is used on selected Mazda MX-5 exhaust applications. Confirm that your exhaust flange uses the same 57mm opening and approximately 112mm bolt-hole spacing before ordering.

Can FDG017 be used on other vehicles?
Yes. FDG017 may be suitable for other exhaust systems using the same flange dimensions. Compatibility should be determined by the 57mm opening, approximately 112mm bolt-hole centres and flange shape.
