HIGH
PERFORMANCE & CUSTOM
EXHAUST SYSTEM SPECIALISTS
FORD
XY
Ford
Falcon XY
DYNO
RESULTS
Ford Muscle Parts
The first dyno results were before our new exhaust
system 2 1/2"system inc tailpipes
TORQUE
TORQUE
KW
HP
SPEED
RPM
631Nm
465
LBS/FT
247
331
154km
5000
607Nm
447
LBS/FT
248
332
161km
5800
After our new 3" system using
2 1/2" tailpipes, the results speak for themselves
TORQUE
TORQUE
KW
HP
SPEED
RPM
663Nm
489
LBS/FT
258
345
153km
5000
639Nm
471
LBS/FT
262
351
161km
5500

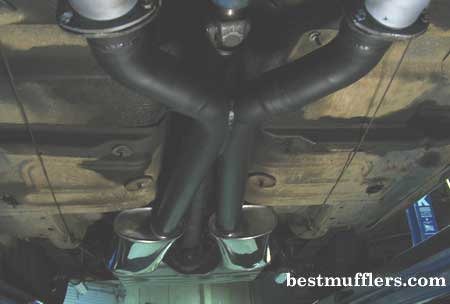

The "X"
System
The exhaust gases from left and right extractor mix
in the x section,this evens out the exhaust gas back
pressure ,giving the engine a much smoother note.
A slight reduction in overall diameter in the x area,
the exhaust gas speed increases through the x which
helps [slightly] by creating a scavenging effect
2 1/2"
tailpipes finish this exhaust system
I recommend using 2 1/4" or 2 1/2" tailpipes
for street driving,keeps the sound level under 96dba
[legal] drops the power output slightly but the noise
reduction is worth it,the smaller the tailpipes the
less amount of
exhaust noise By flanging the mufflers you can just
unbolt the smaller tailpipes for the 1/4 mile
Last
Update
Sunday, 10 September, 2006
.
